Product model

P4.44

P5.7

P6.67

P8

P10

Productparameter

Spacing

4.44mm

5.7mm

6.67mm

8mm

10mm

Pixel density

50625dot/㎡

30625dot/㎡

22500dot/㎡

15625dot/㎡

10000dot/㎡

LED Choose LED

components

SMD1921(1R1G1B)

SMD2727(1R1G1B)

SMD2727(1R1G1B)

SMD3535(1R1G1B)

SMD3535(1R1G1B)

Module size

480*320mm

480*320mm

480*320mm

480*320mm

480*320mm

Module resolution

108*72=7776dots

84*56=4704dots

72*48=3456dots

60*40=2400dots

48*32=1536dots

Cabinetparameters

Cabinet dimension

960*960*71mm

960*960*71mm

960*960*71mm

960*960*71mm

960*960*71mm

Cabinet resolution

216*216=46656dots

168*168=28224dots

144*144=20736dots

120*120=14400dots

96*96=9216dots

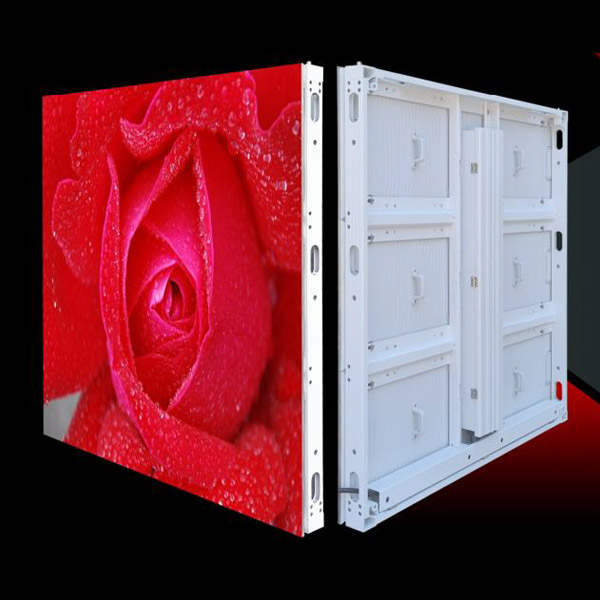

Cabinet material

Aluminum

Cabinet weight

24.1kg

24.1kg

24.1kg

24.1kg

24.1kg

Cabinet specification

Brightness

≥6000cd/㎡

≥6000cd/㎡

≥6000cd/㎡

≥6000cd/㎡

≥6000cd/㎡

Viewing Angle

140°/160°

140°/160°

140°/160°

140°/160°

140°/160°

Viewing distance

4-100m

5-100m

6-100m

8-100m

10-100m

Refreshfrequency

3840Hz

3840Hz

3840Hz

3840Hz

3840Hz

Scanningmode

1/9S

1/7S

1/6S

1/4S

1/2S

IP Level

IP65

IP65

IP65

IP65

IP65

Operating voltage

AC100-240Y,50-60Hz

Control mode

Computer synchronous control

Control system

Nova

Operating temperature

-20℃~65℃

Working humidity

10%~90%RH
